Extrusion Production Line With Gravimetric Control System
1.Video Introduction

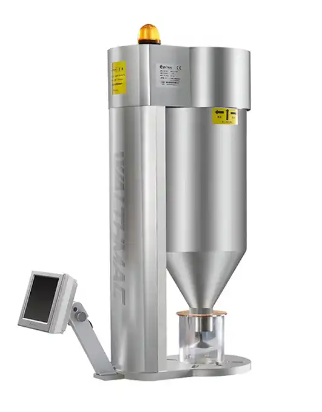

2.Product Description
Walthmac Gravimetric Control System measures the material consumption of the extruder and collects
the screw speed of the extrusion production line and the speed of the tractor in real-time to form a closed-loop
control system.After setting the output of meter weight/extrusion, according to this value,the system will adjust
the screw speed and haul off speed in real time to achieve the real-time controlling of the pipe wall thickness.

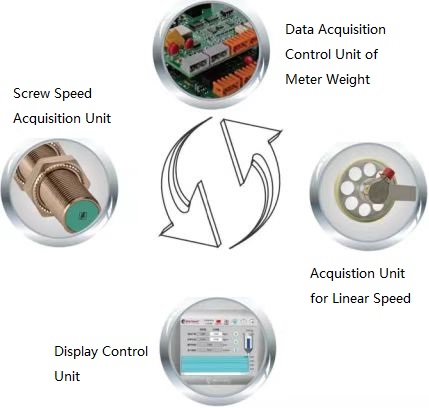

3.Main components
| Data Acquisition Control Unit | Collecting data of meter weight in any time |
| Screw Speed Acquisition Unit | Adopting the extruder's screw speed |
| Display Control Unit | Inputting and providing changes of data to oprator to check |
| Acquisition Unit for Linear Speed | Adopting the haul off speed
|
4.Bring the benefits when producing
- Saving raw material about 1%-5%
- Shorten start-up time
- Keeping production process stable,improving the quality of products
- Reducing the requirement of labour's capability and diathesis
5.The principle for saving raw material
Setting the data you want in Gravimetric Control System,it will adjust the speed of screw in extruder and
the speed of haul off to control the pipe wall thickness

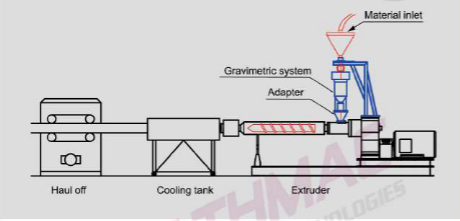

6.How to install system
Removing the storage hopper and adding an adapter to install the Gravimetric Control System,then install
the bracket and storage hopper above the system

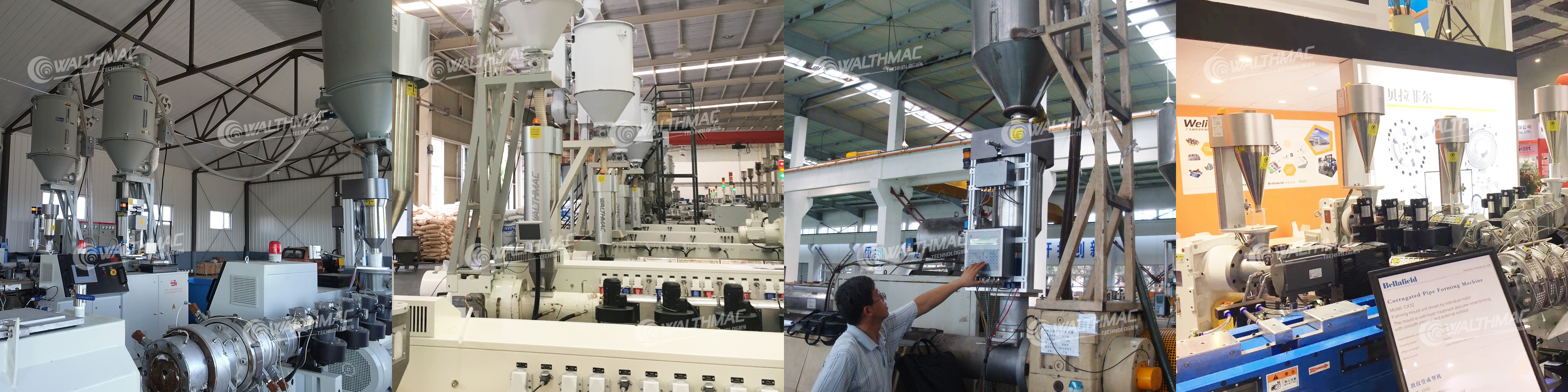

7.On-sight Application
8.About WALTHMAC
Walthmac has setted in 2009.As a national Hi-tech enterprise,our company has quickly
grown up to be the top-level in processing industry field,based on the strong creative
inspiration and innovation spirit deeply-rooted in company's development gene.
We concentrate on helping our client practicing the purpose of auto-manufacturing procedure
therefore,to enhance quality standard,cost saving on materials and labour sources,sharply
cut down the dependence on personal experiences of operator.
Designed concept for 10 years service time,is our plan but serious promise to all Walthmac
valuable clients.
We have our own research and development technology to design products.
Every year,we fly to many countries include Thailand,Vietnam etc to participate the exhibition
in order to communicate with more strong companies.
