CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe

Brand Name : Walthmac

Model Number : Ultrasonic Thickness Measuring System

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : $30,200.00-$105,000.00

Payment Terms : T/T, L/C, D/P, Western Union

Supply Ability : 80 sets per month

Delivery Time : 5-8 working weeks

Packaging Details : Wooden cases

Condition : New

Color : Greyish white

Waranty : 1 year

The OD Measuring Range : 0.25-1600mm

The Wall Thickness Measuring Range : 0.25-120 mm

Machinery Test : Provided

Operation Voltage : AC 220V (Customized power avl upon request)

Control units : Walthmac DATASE 1000R

The Application for Material : Plastic Pipes,Rubber Pipes

Power Consumption : <30W

Contact Now

Ultrasonic Thickness Measuring System For Gauging Plastic Pipe







1.Technical Parameter





Applications Gas pipe,water pipe,car catheter,medical catheter,ocean pipe
Control unit Walthmac DATASE 1000R ultrasonic measurement control system
Display unit 12''/15''/21'' true color of touch screen
Power consumption <30w
Operation voltage AC 220V

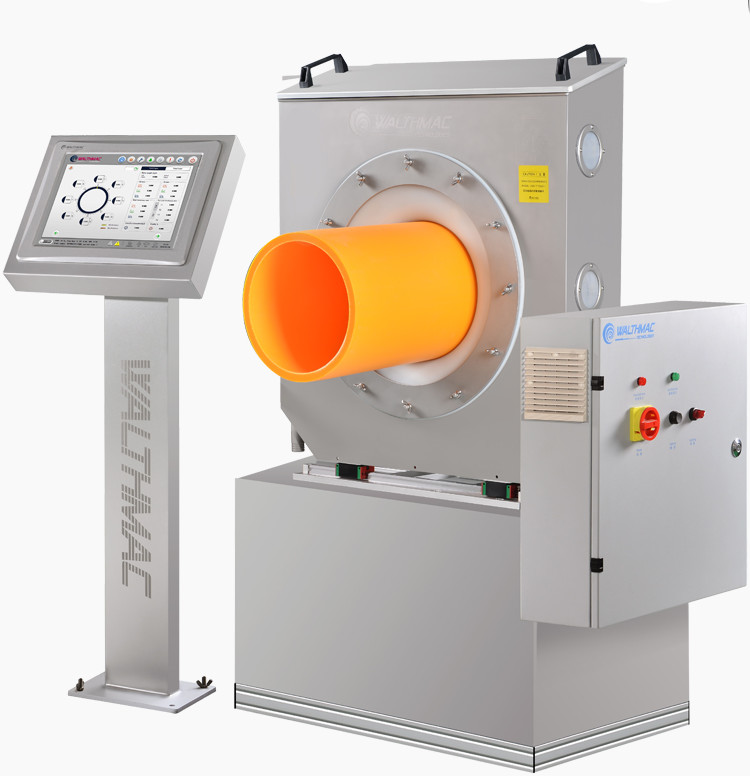

2.Product Description



    WalthMac Ultrasonic Thickness Measuring System is used for gauging the wall thickness of plastic

    pipes with high precision.Usually we put it in the production line of gas pipe,water supply pipe,drainage

    pipe and other plastic pipes.Our system includes world-class ultrasound sensors and data processing

    software and hardware,which can realize online measurement of multiple geometric dimensions such as

    wall thickness.After analysising and managing, it can find product defects at the first time to reduce quality

    risks and lower cost as well as keep production simple and orderly.

                                                                                                                                                     CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe

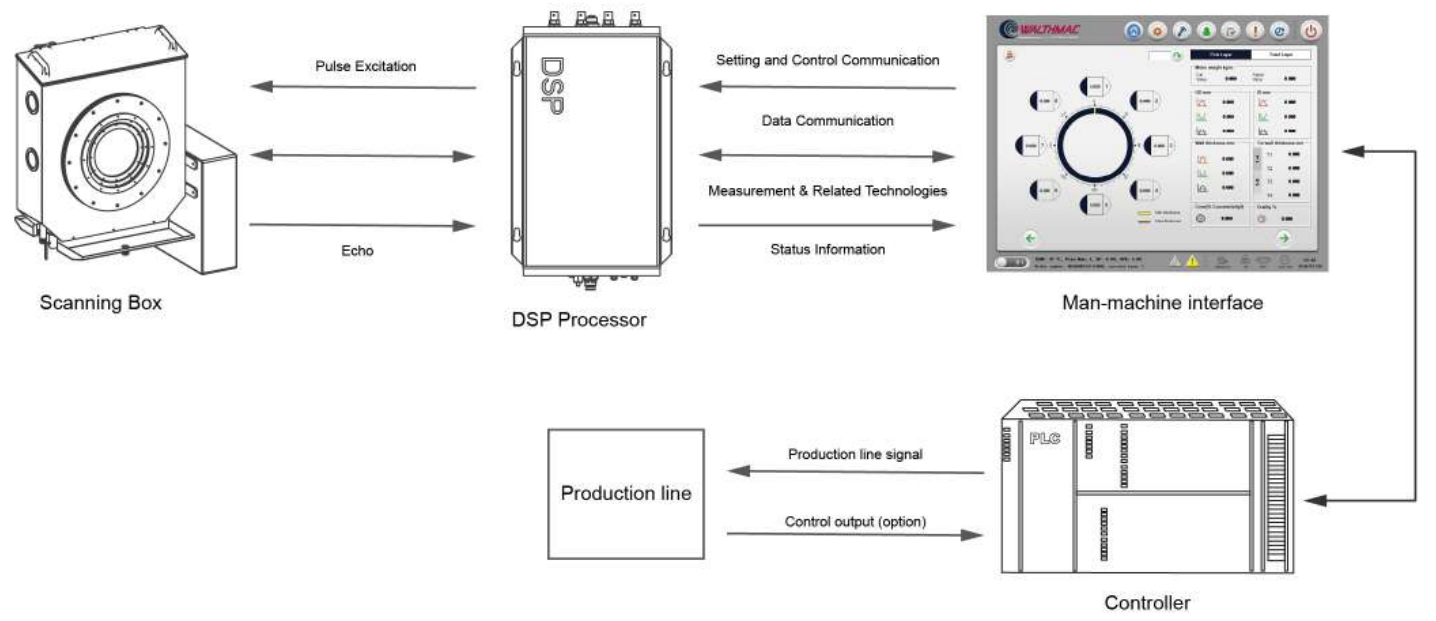

3.System Structure



CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe



       And there offers 4/8/16 pieces of ultrasonic probe in Scanning Box,you can choose any type to meet your

       requirements





4.The benefits

  • The system can reduce the risk of unqualified plastic pipes in producting
  • Shortenning the start-up time and reducing rejection ratio
  • Offering full production data record,easy traceability in the future
  • Auto-generating pipe quality statistics report.Significantly enhance quality control capability

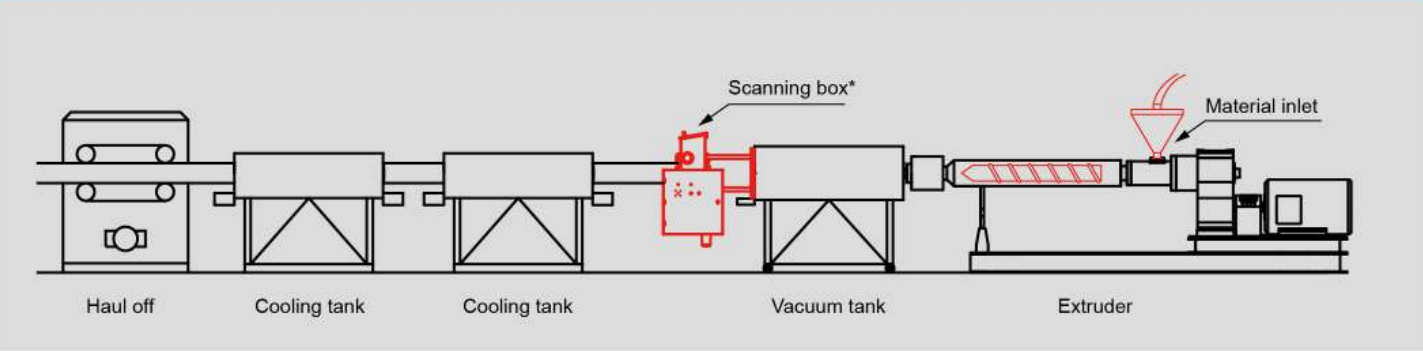

5.How to install Ultrasonic Thickness Mearsuring System



       CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe



         Putting system after Vacuum tank(also can put it after the first Cooling tank machine),when pipe throught the

         box,data will be shown immediately on the Man-machine Interface

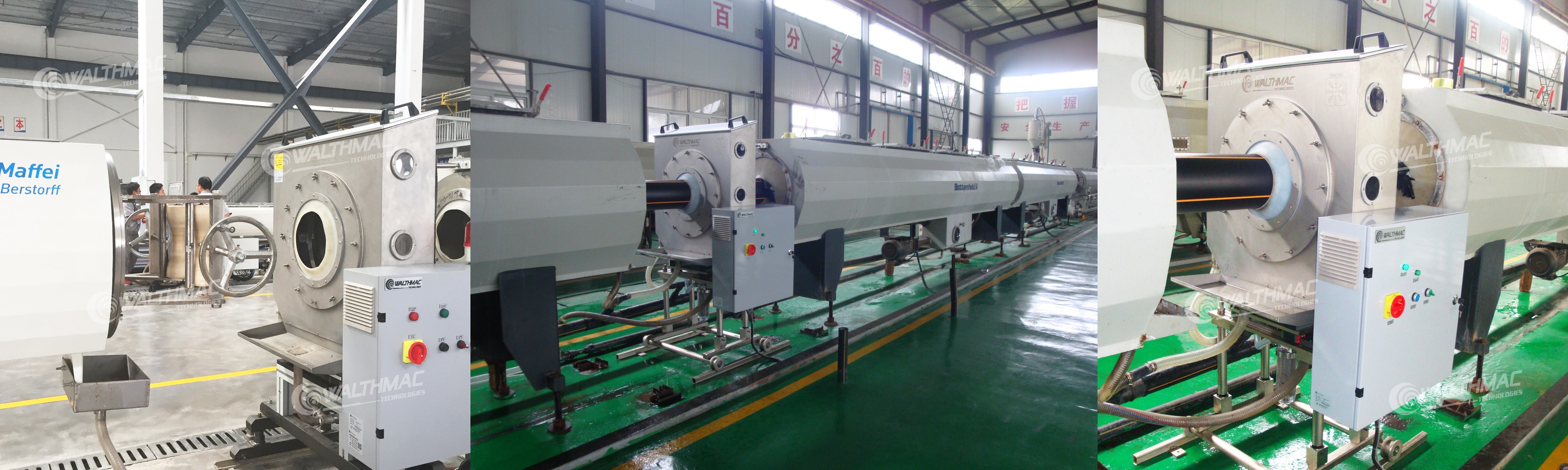

6.On-sight Application



           CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe



7.About WALTHMAC



   Walthmac has setted in 2009.As a national Hi-tech enterprise,our company has quickly

   grown up to be the top-level in processing industry field,based on the strong creative

   inspiration and innovation spirit deeply-rooted in company's development gene.



            CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe



   We concentrate on helping our client practicing the purpose of auto-manufacturing procedure

   therefore,to enhance quality standard,cost saving on materials and labour sources,sharply

   cut down the dependence on personal experiences of operator.

   Designed concept for 10 years service time,is our plan but serious promise to all Walthmac

   valuable clients.

   We have our own research and development technology to design products.

             CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe



     Every year,we fly to many countries include Thailand,Vietnam etc to participate the exhibition

     in order to communicate with more strong companies.

             CE Ultrasonic Pipe Wall Thickness Measuring Instrument Gauging Plastic Pipe
